Proof Research 14.5” Carbon Fiber Barrel - Lightweight Precision With a Premium Price Tag

Bottom Line

The Proof Research 14.5” Carbon Fiber Barrel is clearly built to a very high standard, and based on my testing, it performed extremely well overall. Accuracy with match ammunition was excellent, the machining and overall finish looked very good, and the carbon fiber construction makes it stand out from most traditional AR-15 barrels.

That said, this barrel is expensive, even compared to other carbon fiber wrapped barrels currently on the market. If your primary concern is maximizing price-to-performance value, there are more economical options available that can deliver similar practical results.

However, if you specifically want a lightweight precision-oriented barrel with premium construction and unique carbon fiber wrapped design, this barrel absolutely offers something different from a typical steel barrel.

Pros & Cons

Pros

• Carbon fiber wrapped construction

• Very lightweight for the performance level

• Excellent overall precision

• High build quality

• Tight chamber and headspace dimensions

• Good bore and chamber finish

• Strong performance with multiple ammunition types

Cons

• Extremely high price

• Gas port is somewhat large for this configuration

Manufacturer Claims

Proof Research states the barrel offers:

• Improved heat dissipation

• Longer barrel life

• Up to 64% lighter weight compared to traditional steel barrels of similar contour

• Aerospace-grade carbon fiber construction

Price & Availability

The Proof Research carbon fiber barrels sit at the very high end of the AR-15 barrel market.

If you’re shopping strictly for value, this probably isn’t the barrel to buy.

But if you specifically want:

• lightweight construction,

• premium machining,

• strong precision potential,

• and the novelty/engineering aspect of carbon fiber construction,

then the added cost may make sense for your use case.

Best Use Cases

Best For

• Lightweight precision-oriented builds

• Hunting rifles

• Competition rifles

• Shooters wanting premium construction

• Users prioritizing weight reduction

• Shooters willing to pay extra for unique construction and refinement

Less Ideal For

• Budget-conscious buyers

• Maximum price-to-performance value

• General-purpose rifles where weight savings are less important

• Users primarily concerned with durability under sustained hard-use firing schedules

Group Performance

Test Overview

All groups were fired at 100 yards using 30-shot groups. The barrel was cooled between groups using a chamber chiller and leaf blower to help maintain consistency between tests.

Results shown here reflect this specific barrel with this specific ammunition selection. Performance can vary between individual barrels and ammo lots.

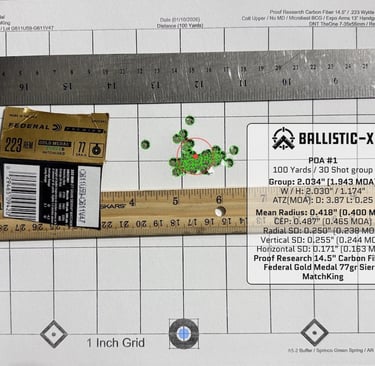

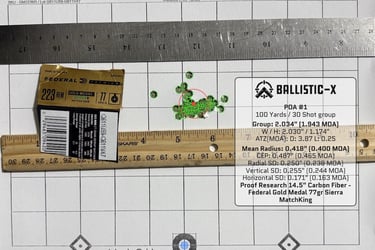

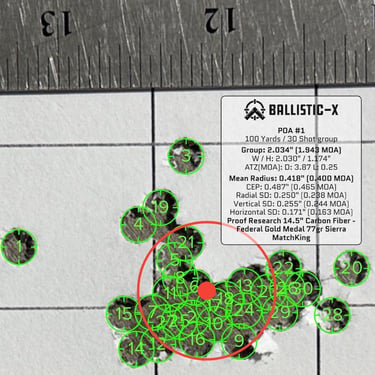

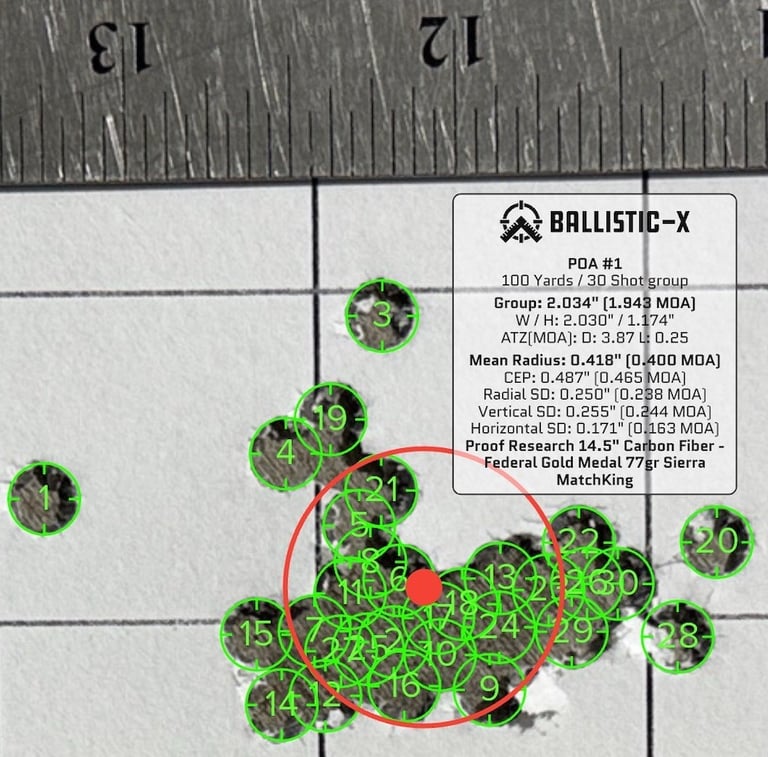

Federal Gold Medal 77gr Siera MatchKing

This barrel performed exceptionally well with Federal Gold Medal Match 77gr Sierra MatchKings.

Performance Data

• Average Velocity: 2315 fps

• Standard Deviation: 20 fps

• 30-Shot Group Size: 1.943 MOA

• Average 10-Shot Group Size: 1.2 MOA

• A-ZED Score: 353 yards

Despite the relatively cold shooting conditions at 38 degrees and persistent wind, the barrel still delivered excellent precision. Velocity was somewhat slower than expected for a 14.5” barrel, but temperature likely contributed to that.

Out of the 37 Federal Gold Medal 77gr groups I currently have logged, this barrel ranked 5th overall, which is an extremely strong showing.

ADI 69gr Sierra MatchKing

I shot two separate 30-shot groups with ADI 69gr SMK.

One of the more interesting aspects of this test was that I completely removed and reinstalled the barrel between the two groups to see how much the point of impact and precision would shift after reassembly.

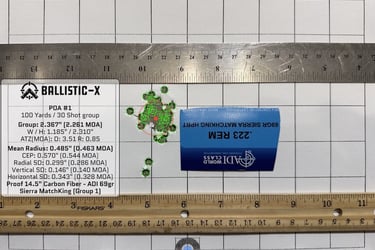

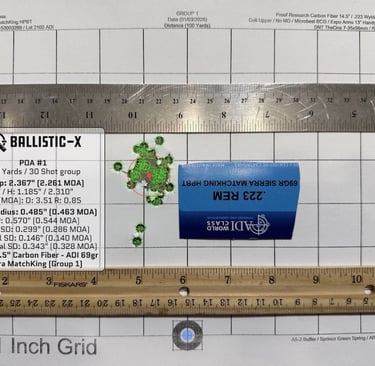

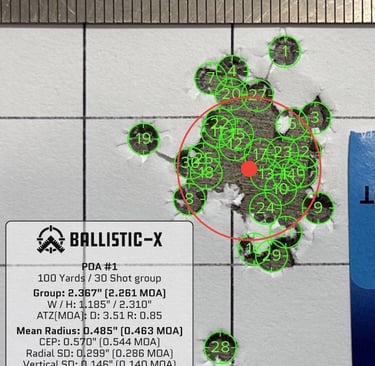

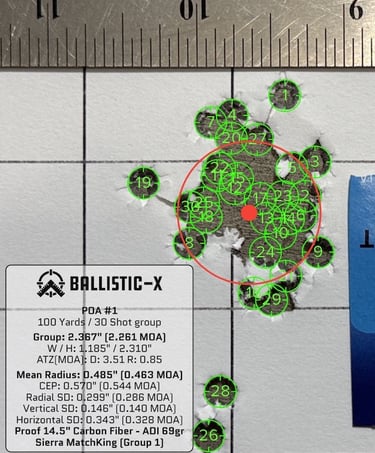

Group 1

• Velocity: 2627 fps

• SD: 35 fps

• 30-Shot Group Size: 2.261 MOA

• Average 10-Shot Group Size: 1.4 MOA

• A-ZED: 305 yards

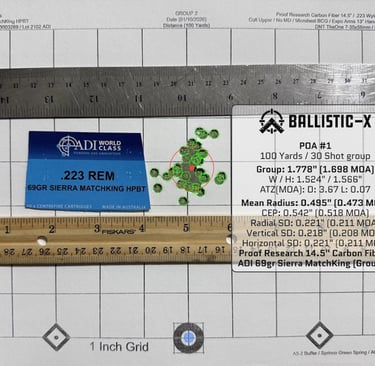

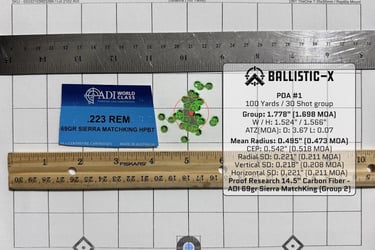

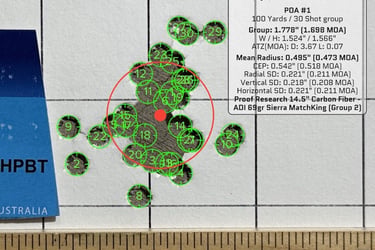

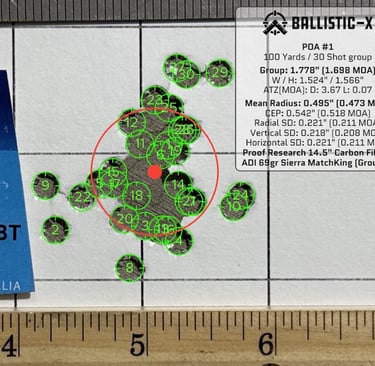

Group 2

• Velocity: 2606 fps

• SD: 33 fps

• 30-Shot Group Size: 1.698 MOA

• Average 10-Shot Group Size: 1.2 MOA

• A-ZED: 298 yards

There appeared to be roughly a 1 MOA windage shift after removing and reinstalling the barrel, which honestly isn’t very much.

Both groups still performed very well overall, especially considering the windy conditions during portions of testing.

Out of the 18 total ADI 69gr groups I currently have, these two groups ranked 2nd and 3rd overall.

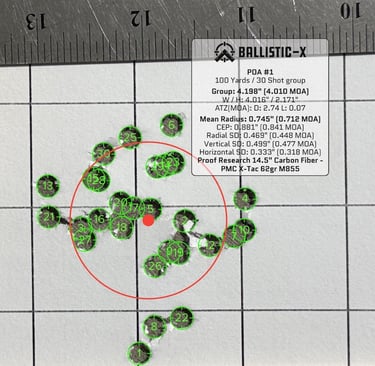

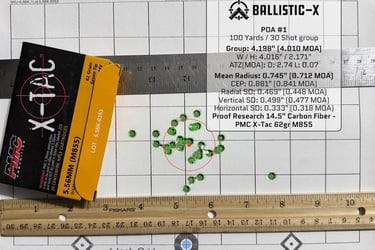

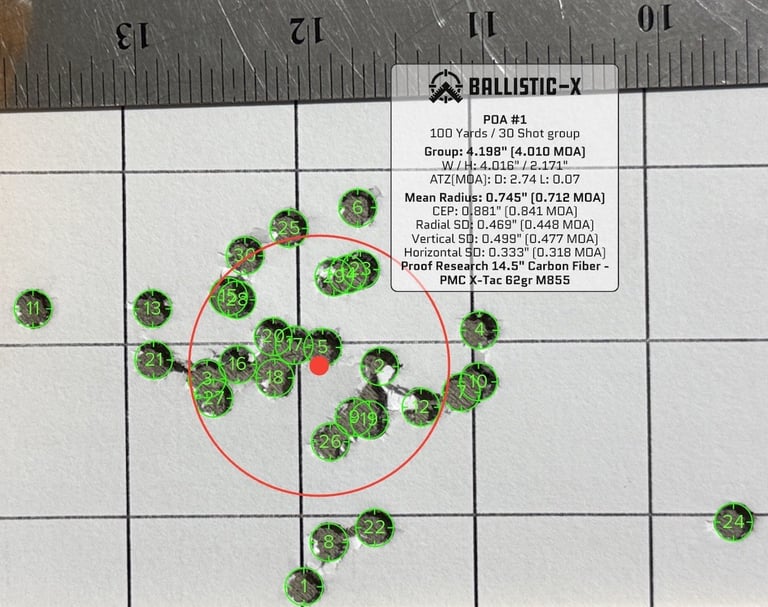

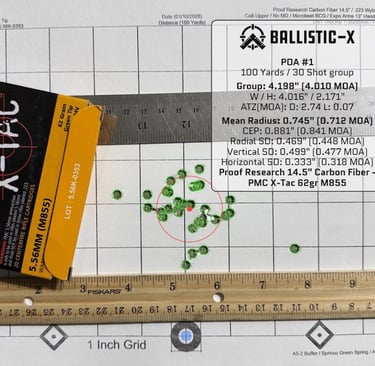

PMC X-TAC M855

I also tested the barrel with PMC X-TAC M855 to get an idea of how it handled more affordable bulk-style ammunition.

Performance Data

• Velocity: 2755 fps

• SD: 14 fps

• 30-Shot Group Size: 4.010 MOA

• Average 10-Shot Group Size: 2.5 MOA

• A-ZED: 198 yards

This was still a respectable result for M855 ammunition, especially considering the wind conditions during testing.

Out of the 20 PMC M855 groups I currently have logged, this barrel ranked 3rd overall.

Borescope Findings

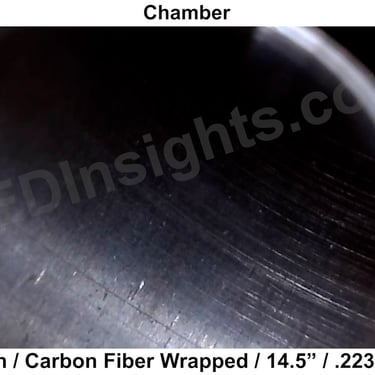

Chamber

The chamber looked excellent overall without any major defects or machining issues.

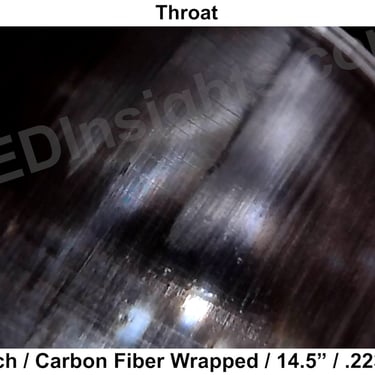

Throat

The throat looked smooth and evenly cut. There was very faint early fire cracking visible, which is expected given the barrel already had a couple hundred rounds through it before testing.

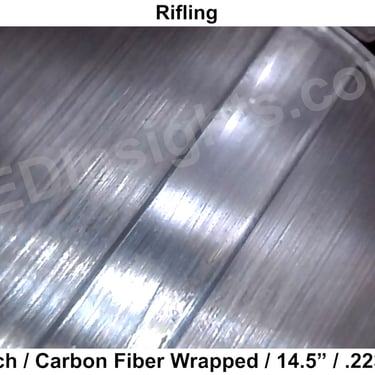

Rifling

The rifling looked very good overall without any obvious issues or abnormalities.

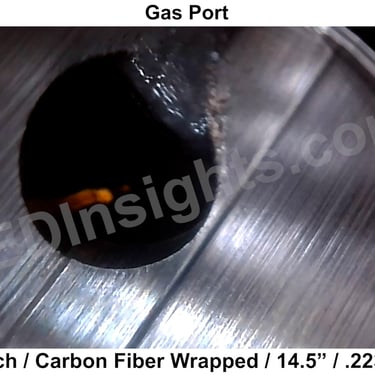

Gas Port

The gas port showed minor wear, but nothing unusual for the round count.

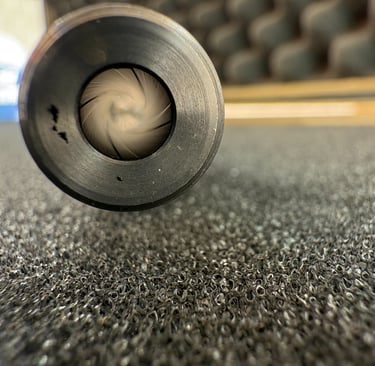

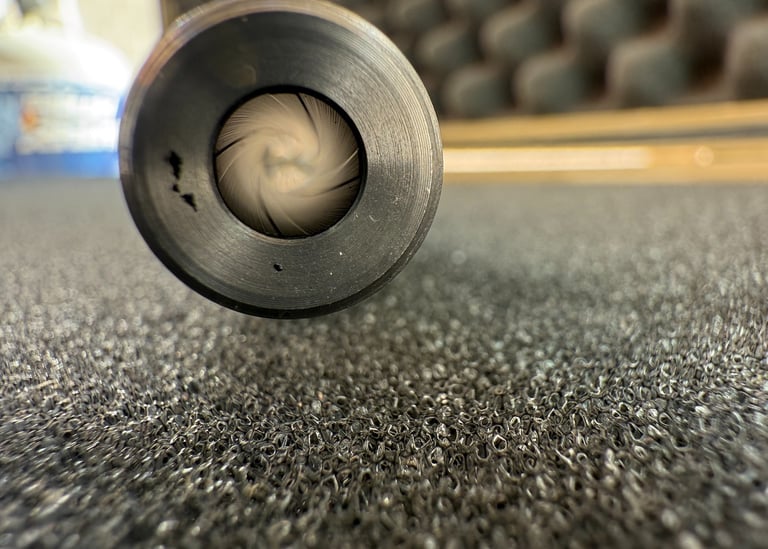

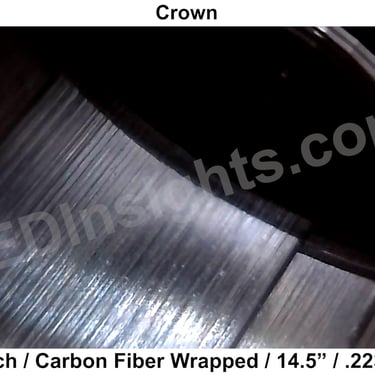

Crown

If you want to get extremely nitpicky, there were a few very small areas of minor roughness on parts of the crown. However, nothing appeared significant enough to realistically affect performance.

Overall, the barrel appeared to have very good machining quality and attention to detail.

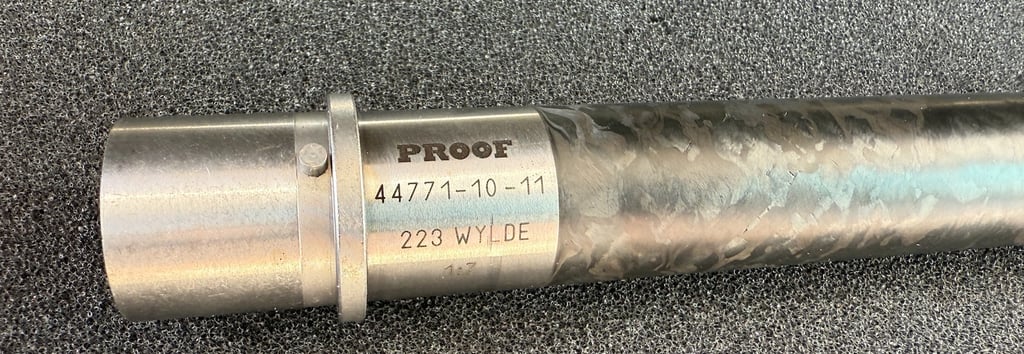

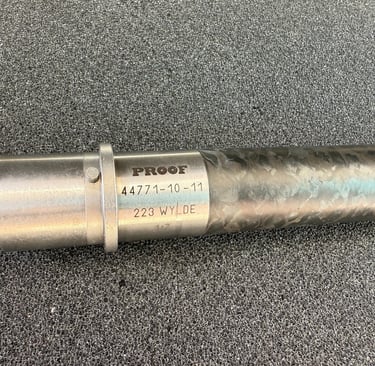

Core Specs

• Length: 14.5”

• Chamber: .223 Wylde

• Twist Rate: 1:7”

• Gas System: Mid-Length

• Material: 416R Stainless Steel

• Rifling: Button Rifled

• Bore Lining: None

• Exterior Finish: Carbon Fiber Wrap

• Muzzle Threads: 1/2x28

This specification set clearly indicates a barrel intended for lightweight precision-oriented use, such as hunting, competition, or high-end general-purpose rifles.

The carbon fiber wrapped construction is also still relatively uncommon in the AR-15 market, which makes this barrel stand out compared to more traditional stainless or chrome-lined offerings.

Gauging & Measurements

Weight

• Measured Weight: 1.516 lbs

That makes this barrel noticeably lighter than a traditional Proof stainless barrel, which weighs roughly 2.3 pounds in the same length.

However, it’s still not the absolute lightest option on the market. Barrels like the BCM ELW or Faxon Gunner are lighter overall

Gas Port Diameter

• Measured Gas Port: 0.080”

That’s somewhat larger than average for this configuration.

The upside is reliable cycling.

The downside is that recoil impulse will likely be somewhat harsher, bolt carrier velocity will increase, and suppressor use may become more difficult without additional tuning.

Headspace

The barrel had slight resistance closing on a 1.4646” gauge, putting it essentially right at minimum spec with this bolt.

Chamber Dimensions

The chamber dimensions gauge barely closed, suggesting the chamber and throat dimensions are also very close to minimum spec.

Barrel Extension Diameter

The barrel extension diameter measured very close to average compared to other barrels I’ve measured.

Gas Block Journal

The gas block journal measured essentially dead-on nominal size, which should provide a very solid gas block fit.

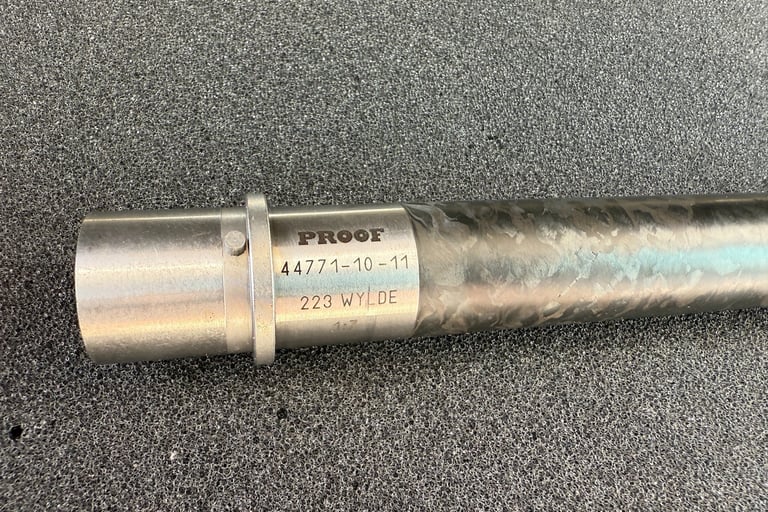

Visual Inspection

Overall machining and cosmetic finish looked excellent.

The barrel also includes a gas block set screw dimple from the factory.

Shooting Setup

Rifle Setup

• Upper Receiver: Colt

• Handguard: Expo Arms 13”

• Bolt Carrier Group: Microbest Chrome

• Buffer: A5-2

• Buffer Spring: Sprinco Green

• Trigger: AR Gold

• Optic: DNT TheOne 7-35x56

• Optic Mount: Reptilia

Shooting Conditions

• Distance: 100 yards

• Temperature: 38

• Humidity: 51%

• Elevation: 1360 ft

• Pressure: 30.47 inHg

Testing Methodology

• All groups were 30 shots

• Barrel cooled between groups

• Rifle stabilized with front rest and rear bag

• Scope magnification set between 30-35x

• Mantis X and Shooter’s Global SG Pulse used to monitor shooter-induced error

• Bore cleaned before testing

Final Thoughts

Overall, I came away pretty impressed with this barrel.

The performance was excellent, build quality looked very good, and the lightweight construction does make for a very appealing setup if your goal is to build a lighter precision-oriented AR-15.

The biggest downside is simply the price.

There are absolutely cheaper barrels that can produce excellent results.

But at the same time, this barrel does feel like a premium product, and based on my testing, the performance backed that up.

If you specifically want a lightweight premium barrel and don’t mind paying for it, the Proof Research carbon fiber barrel definitely delivered.
