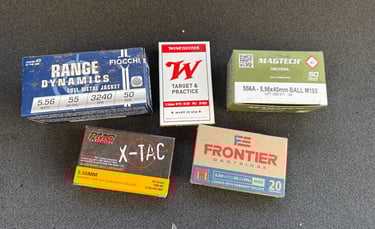

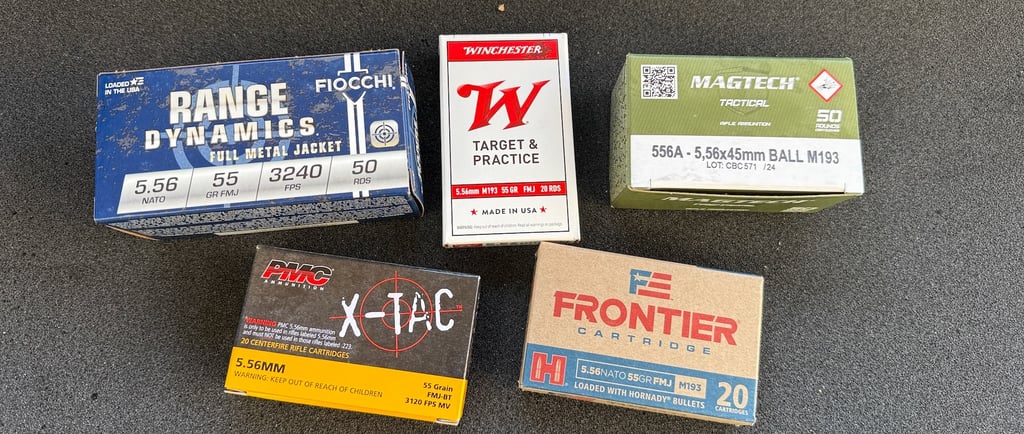

M193 Ammo Comparison: Real Data on 5 Popular 55gr Loads
A side-by-side comparison of five popular M193 loads, using 30-shot groups to reveal real differences in velocity, consistency, and accuracy.
Preston Moore
4/11/20265 min read
Key Takeaways
Best Overall Balance: Frontier M193 — highest velocity with solid accuracy
Most Accurate: Fiocchi M193 — tightest groups across both barrels
Most Consistent (Velocity): PMC X-Tac — lowest SDs, predictable performance
Underperformer: Winchester — slow velocity with poor accuracy
Fiocchi Range Dynamics M193 (556M193L)
Analysis
Fiocchi was the clear accuracy leader in this test.
Best A-ZED scores in both barrels
Tightest overall dispersion
Consistent performance across two very different barrels
Velocity was mid-pack, but the group performance more than made up for it.
Takeaway
Fiocchi shot the best groups in this dataset. So, if accuracy is your goal, this is a solid M193 option.

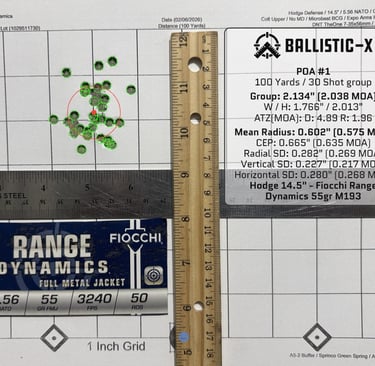

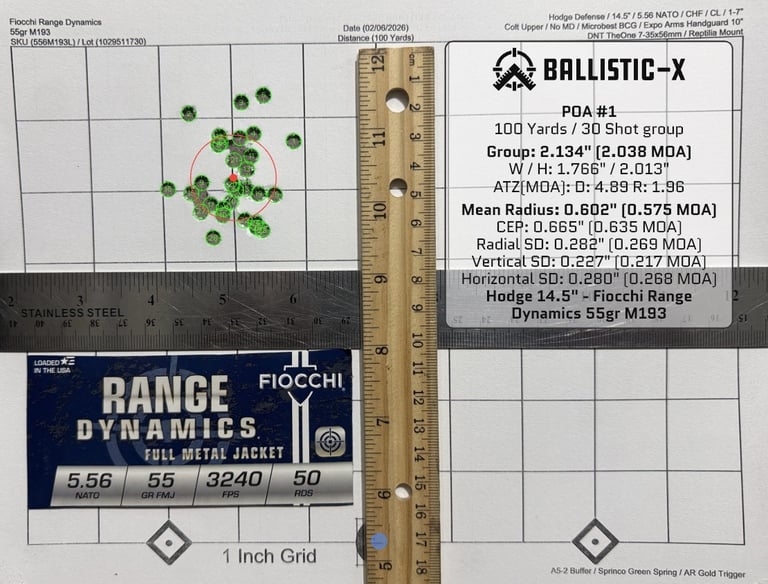

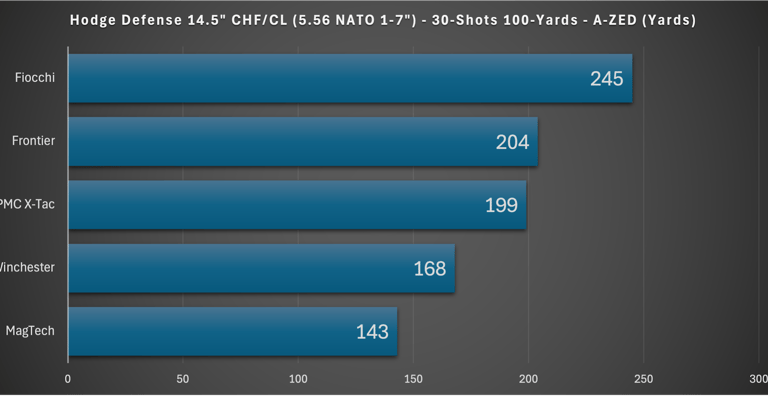

14.5” Hodge
Velocity: 2881 fps (SD 29)
Group Size: 2.038 MOA
Mean Radius: 0.575
A-ZED: 245 yards

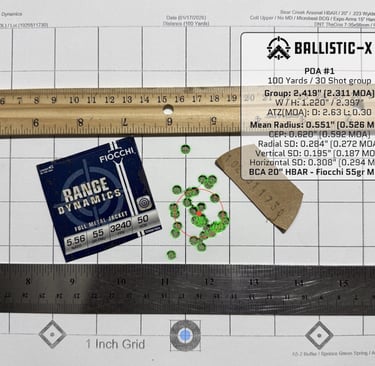

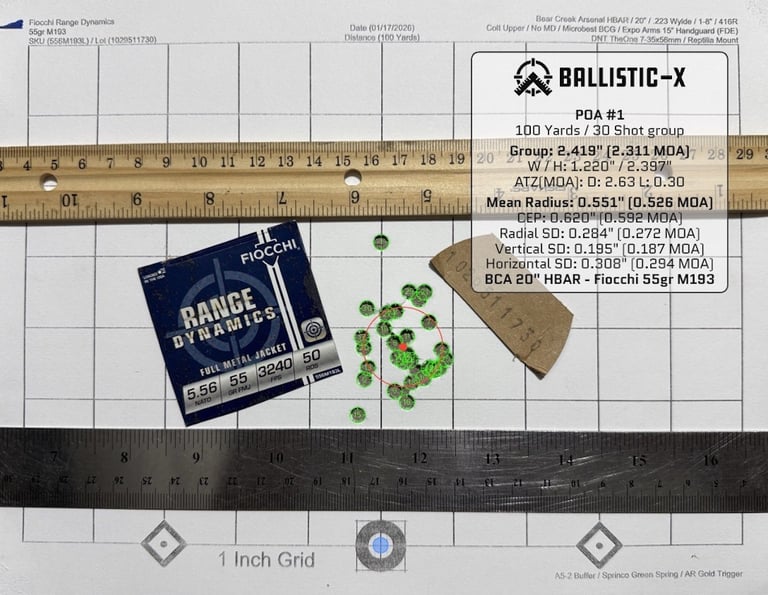

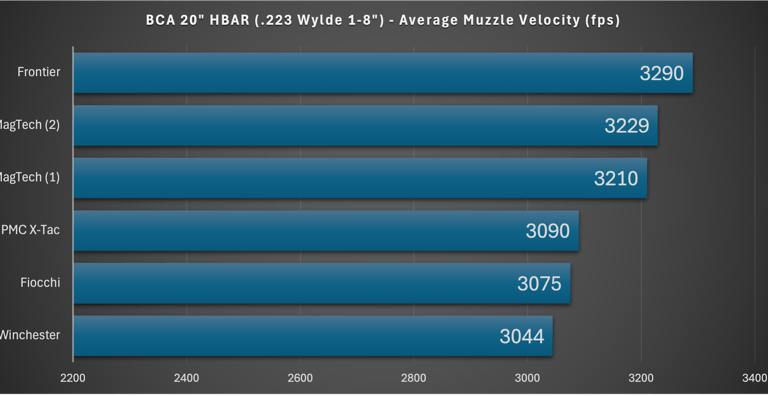

20” BCA
Velocity: 3075 fps (SD 36)
Group Size: 2.311 MOA
Mean Radius: 0.526
A-ZED: 268 yards
Frontier 55gr M193 (FR200

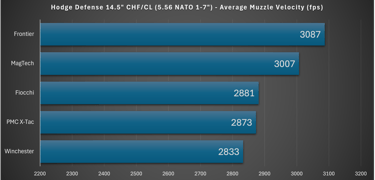

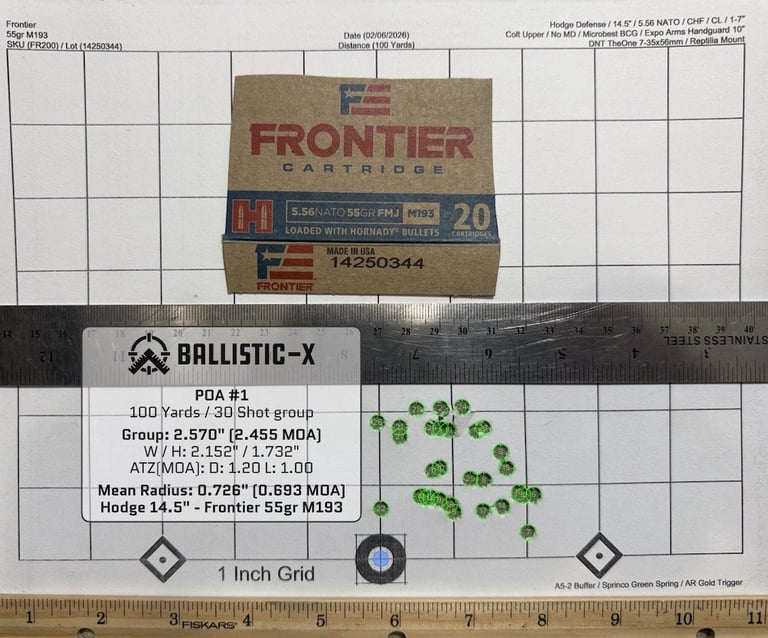

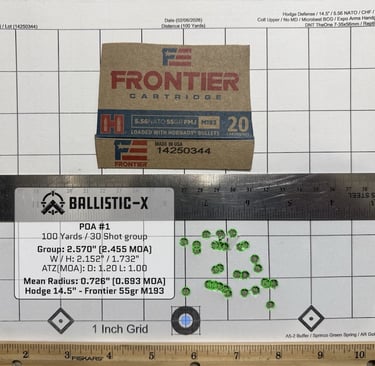

14.5” Hodge
Velocity: 3087 fps (SD 32)
Group Size: 2.455 MOA
Mean Radius: 0.693
A-ZED: 204 yards

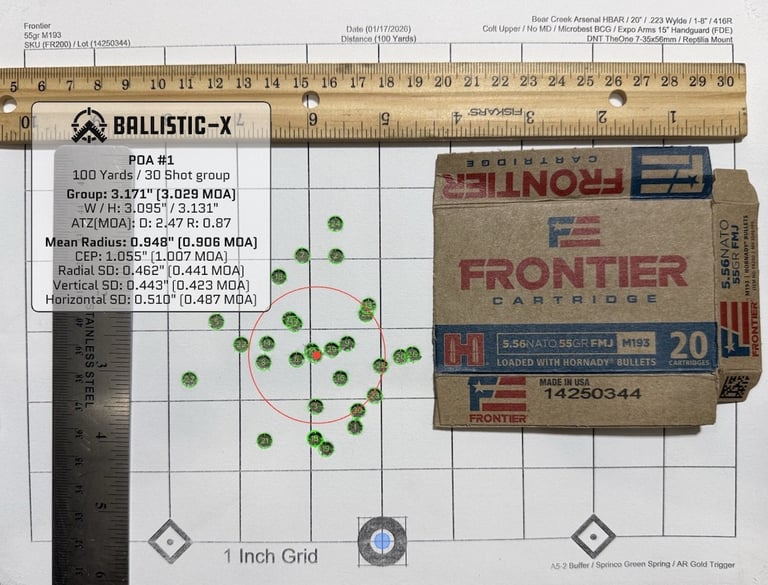

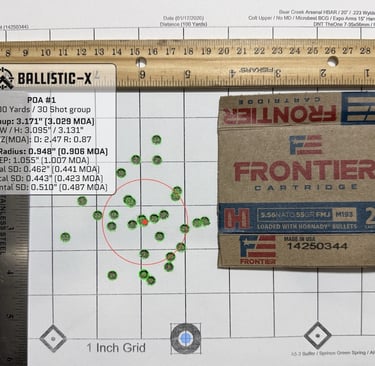

20” BCA
Velocity: 3290 fps (SD 30)
Group Size: 3.029 MOA
Mean Radius: 0.906
A-ZED: 156 yards
Analysis
Frontier stood out as the fastest ammo in the test, by a noticeable margin.
Despite that, accuracy stayed competitive:
Not as tight as Fiocchi
But still respectable accuracy for an M193 variant
This combination of:
High velocity
Acceptable dispersion
…makes it the most well-rounded option.
Takeaway
Frontier offers the best balance of velocity and accuracy, making it the strongest general-purpose choice.
PMC X-Tac 55gr M193 (5.56X)

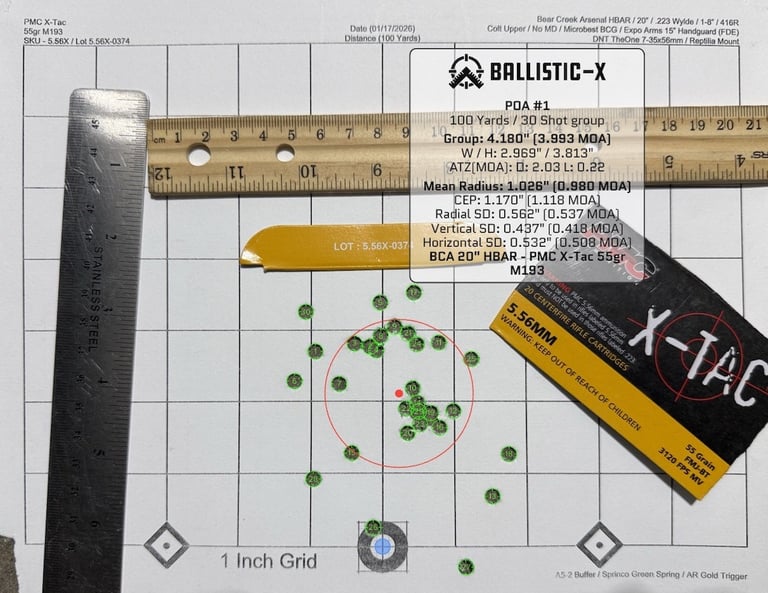

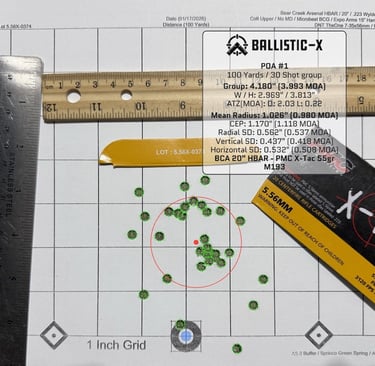

20” BCA
Velocity: 3090 fps (SD 24)
30-Shot Group Size: 3.993 MOA
Mean Radius: 0.980
A-ZED: 144 yards

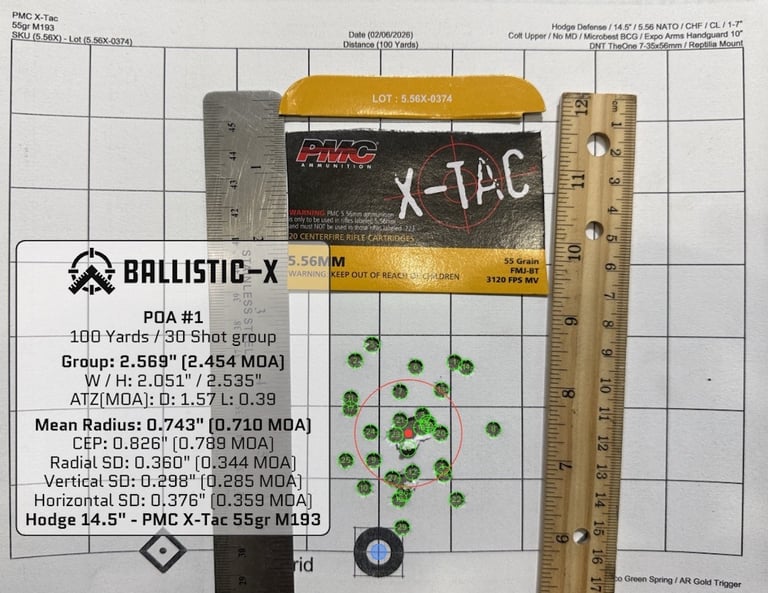

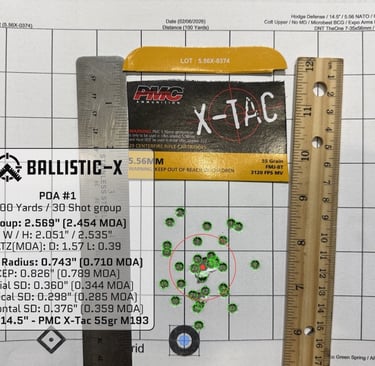

14.5" Hodge
Velocity: 2873 fps (SD 28)
30-ShotGroup Size: 2.454 MOA
Mean Radius: 0.710
A-ZED: 199 yards
Analysis
PMC didn’t dominate in any single category—but it was the most consistent:
Lowest SD values in the dataset
Acceptable group performance
Mid-tier velocity
No major outliers or surprises
Accuracy was middle-of-the-pack, but stable.
Takeaway
PMC is the average option. It’s probably the most widely available with acceptable performance, making it a safe choice for bulk use.
MagTech 55gr M193 (556A)

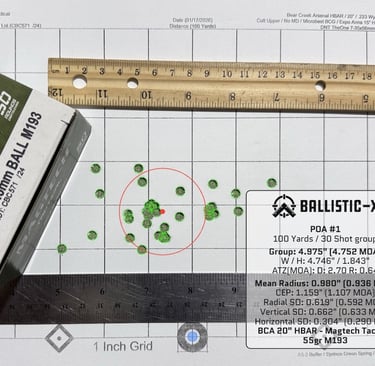

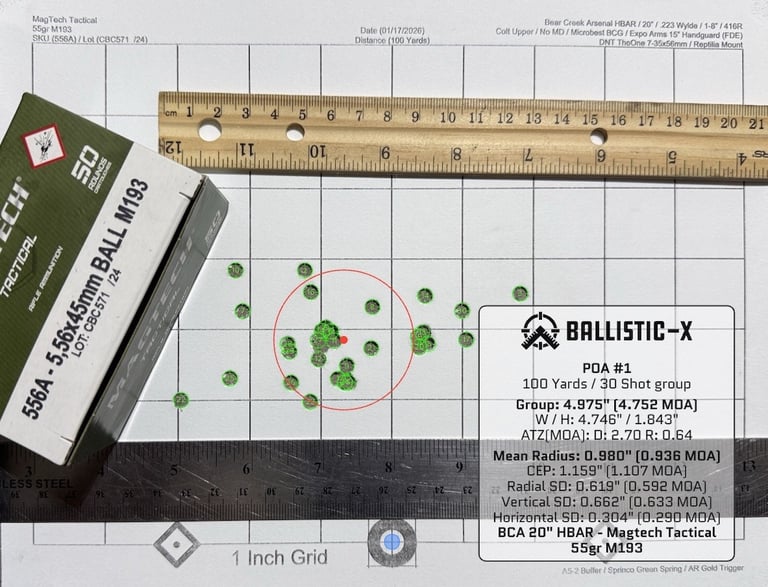

20” BCA (Group 1)
Velocity: 3210 fps (SD 35)
30-Shot Group Size: 4.752 MOA
Mean Radius: 0.936 MOA
A-ZED: ~143–151 yards

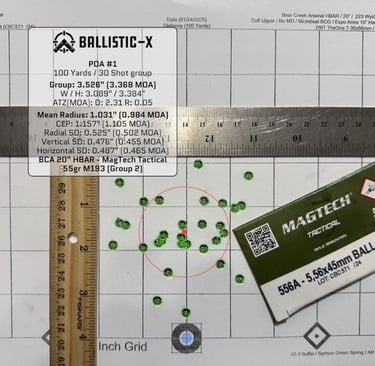

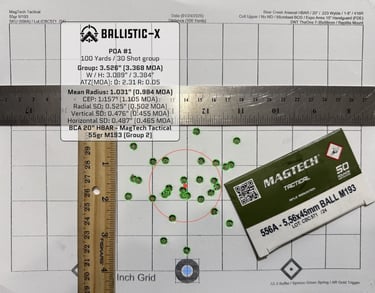

20” BCA (Group 2)
Velocity: 3229 fps (SD 30)
30-Shot Group Size: 3.368 MOA
Mean Radius: 0.936 MOA
A-ZED: ~143–151 yards

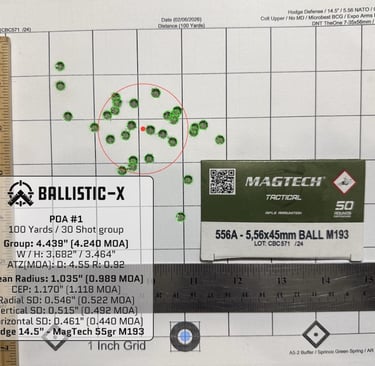

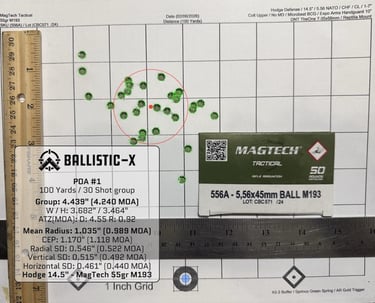

14.5" Hodge
Velocity: 3007 fps (SD 29)
Group Size: 4.240 MOA
Mean Radius: 0.989
A-ZED: 168 yards
Analysis
MagTech had strong velocity, second only to Frontier.
However:
Group sizes were consistently large
Results held even after retesting
The second test with the BCA barrel tightened the shape of the group, but overall dispersion didn’t meaningfully improve.
Takeaway
MagTech offers good velocity, but the accuracy tradeoff is significant compared to other options.
Winchester 55gr M193 (WM193K)

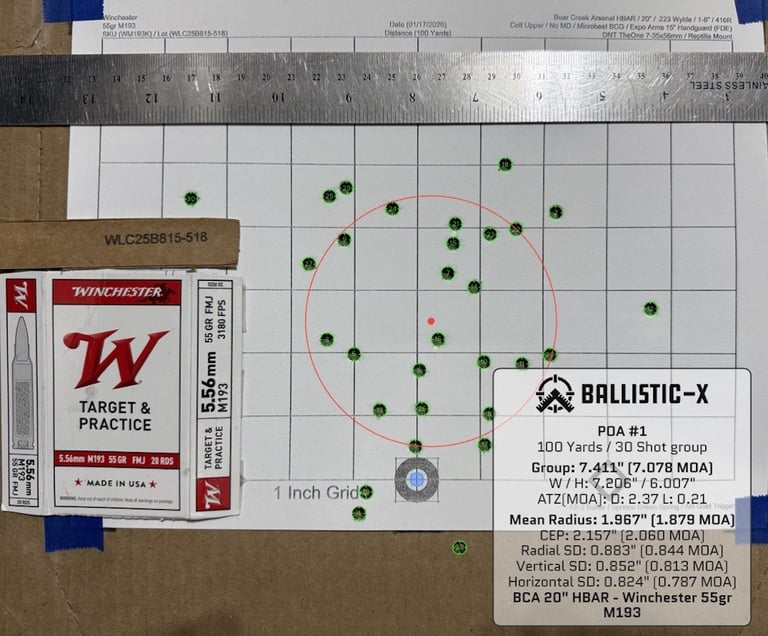

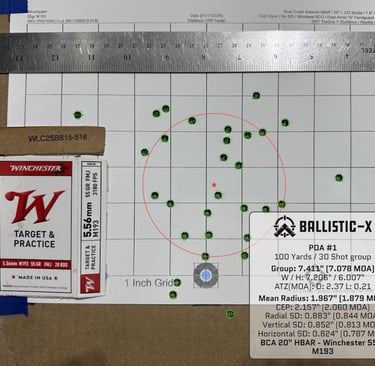

20” BCA
Velocity: 3044 fps (SD 39)
Group Size: 7.078 MOA
Mean Radius: 1.879
A-ZED: 75 yards

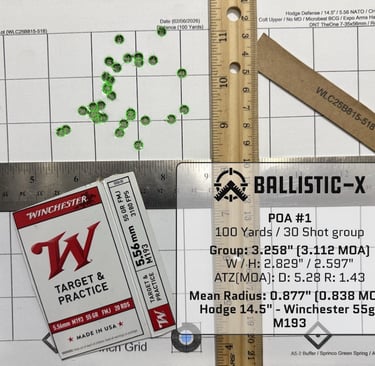

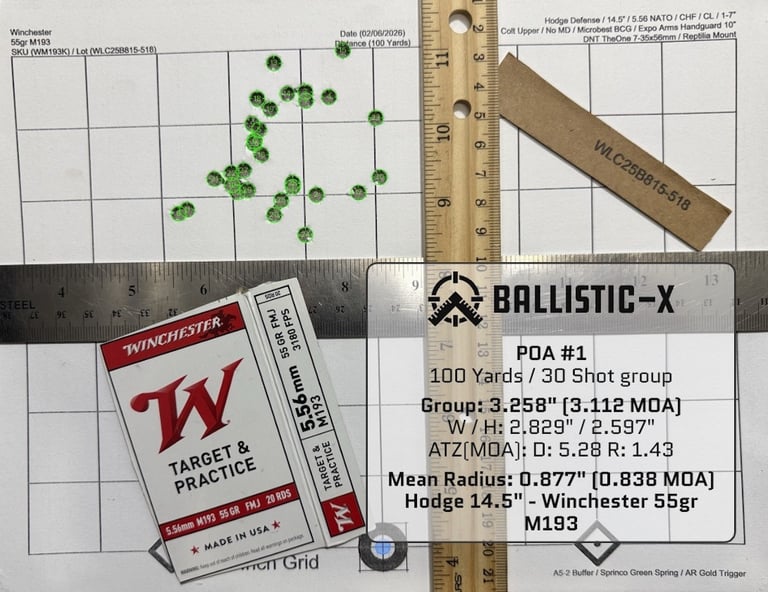

14.5" Hodge
Velocity: 2833 fps (SD 43)
Group Size: 3.112 MOA
Mean Radius: 0.838
A-ZED: 168 yards
Analysis
Winchester struggled across both key metrics:
Slowest velocities in the test
Worst SD values
Large group sizes (by a wide margin in the 20” barrel)
The performance gap here is significant.
Takeaway
With similar pricing across all options, Winchester is clearly outclassed in this dataset.

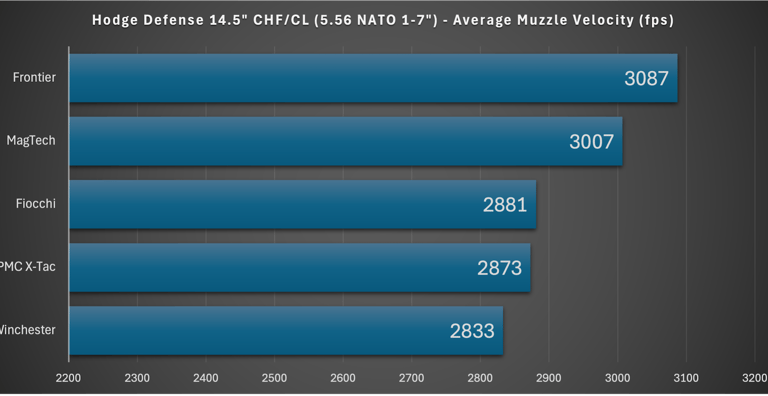

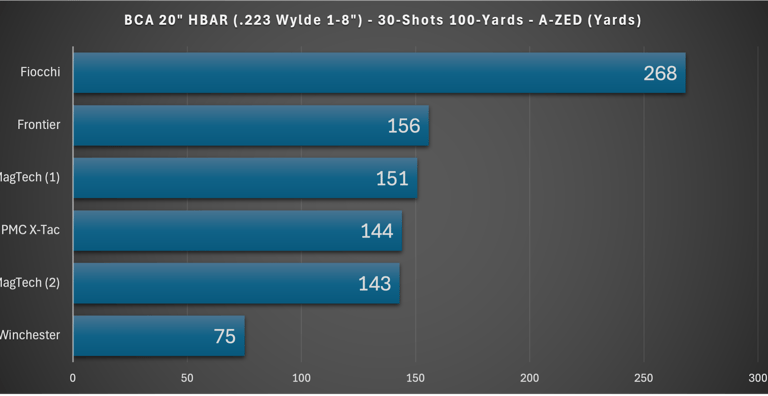

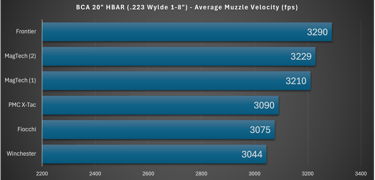

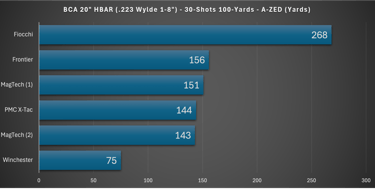

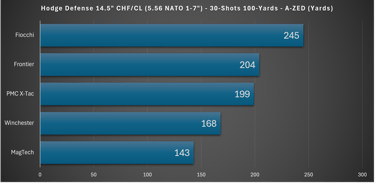

Overall Comparison
When you step back and look at everything together:
Fiocchi → Best accuracy
Frontier → Best balance
PMC → Best Availability
MagTech → Fast, but poor accuracy
Winchester → Underperformed across the board
And importantly:
All of these loads cost roughly the same.
So this isn’t a budget decision, it’s purely about performance.
Test Setup & Conditions
Methodology Note
This standardized setup is used across my tests whenever possible to maintain consistency and allow for more meaningful comparisons.
Rifle Configurations
14.5 Hodge Defense
14.5” Hodge Defense CHF Chrome-Lined
5.56 NATO, 1:7 twist
Upper Receiver: Colt
Bolt Carrier Group: Microbest (Chrome)
Handguard: Expo Arms 10”
Muzzle Device: None
Trigger: AR Gold
Buffer: Vltor A5-2
Buffer Spring: Sprinco Green
20" Bear Creek Arsenal HBAR
.223 Wylde, 1:8 twist
Upper Receiver: Colt
Bolt Carrier Group: Microbest (Chrome)
Handguard: Expo Arms 15”
Muzzle Device: None
Trigger: AR Gold
Buffer: Vltor A5-2
Buffer Spring: Sprinco Green
Optic & Aiming Setup
Optic: DNT TheOne 7–35×56mm
Mount: Reptilia 34mm AUS
Support Equipment
Front Rest: Caldwell The Rock BR Front Rest
Rear Bag: Protektor
Chronograph: Garmin Xero C1 Pro
Environmental Conditions
Temperature: ~50–56°F
Elevation: ~1360 ft
Testing Protocol
Distance: 100 yards
Group Type: 30-shot groups
Rationale:
30-shot groups better represent true dispersion
Mean Radius/AZED used to Reduce the influence of outliers
30-shots fired in succession to replicate sustained fire with barrel heat buildup as one would encounter in a match or other practical scenario
Additional Notes:
Point of impact intentionally offset to preserve aiming point
Price & Availability
Across the board, pricing for M193 is relatively tight, with most options falling within a very similar price range. Because of that, availability and consistency may end up mattering more than small price differences depending on what you’re trying to do.
Given how close pricing is overall, the better approach is usually to prioritize availability, lot consistency, and performance in your rifle, rather than chasing small per-round savings.
If you’re looking to check current pricing or availability, I’ve linked a few options below...
Fiocchi M193
Frontier M193
PMC X-Tac M193
MagTech M193
Winchester M193
Disclosures
All ammunition used in this test was purchased by me. The BCA barrel used in testing was also purchased by me.
The DNT 7-35x56mm scope was provided by DNT Optics for evaluation purposes. The Hodge barrel used in this test was provided by a subscriber.
This article may contain affiliate links. If you choose to purchase through these links, it may provide a small commission that helps support continued testing and content creation at no additional cost to you.
All opinions and conclusions are based solely on my own testing and analysis.
